Report about Executions + Defects
Report consists of a unique excel sheet with these informations:
- TestLab Path (f.e. Root\Folder1\Folder1_1\...)
- TestSet Name
- Total Number of Tests
- No Run
- Not Completed
- Tot Bug

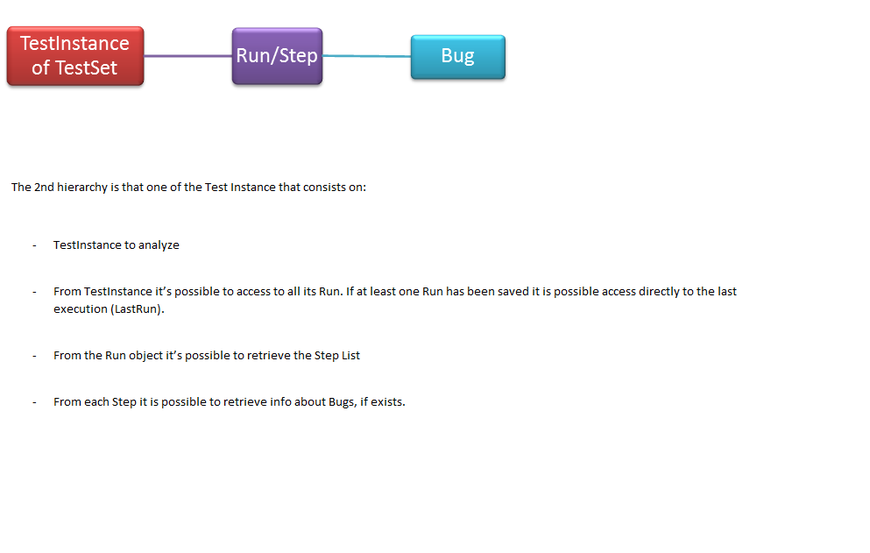

Before extract information about test executions and linked bugs it's very important to understand which are the relations between objects. Here are the hierarchy of the objects:
Data Extraction - Summary:
- Every Test Case gets AT LEAST one STEP
- Defects are created only during the Run Execution, more deeply during Step Execution.
- The extraction of data will be done through the selection of a custom button inside the TestLab section that will work only if a folder is selected.
- If the check of the folder is OK then it will extract all the TestSets under the selected folder and its hierarchy. We'll use the FindTestSets method of TestSetFolder object.
- With a for cycle for each TestSet we'll extract the TestInstance List
- We'll do an internal for cycle for each TestInstance to retrieve the execution status and access to the last Run, if exists.
- From the Run we'll analyze all single Step execution to understand if it is linked to a Bug. If a Bug exists we'll increase the total counter and the counter of the bug status.
Implementation on the Product
See the WorkFlow Script Editor to know how to create a custom button.
Suppose the Action linked to the button is actReportRunDefect.
1. We'll insert into the ActionCanExecute the call to the main Sub into TestLab.
On Error Resume Next
Res = True
if ActionName = "actReportRunDefect" then
'Call to Sub under TestLab
ActionCanExecute = Res
On Error Goto 0
2. Into TestLab section put the main Sub TestSet_ReportRunDefect
On Error Resume Next
Dim objXLS, objWkb, objWks, i
Dim myTestSetList, myListaIstanze
Dim varRes, arrRes, j, col
'Check if focus is on a folder otherwise quit
'Use the global object objFold_TL.
'This object must be declared in common module
'and put this code into the event MoveToFolder:
' set objFold_TL = Folder
'and this one in ExitModule (common)
'and this one in TestSet_MoveTo (TestLab):
' set objFold_TL = Nothing
if objFold_TL.IsNull then
msgbox "I don't have the focus on the folder. Select a Folder.", vbCritical + vbSystemModal, "Quality Center - Folder Focus Error"
'If I'm here it means that the check of the folder is ok
'Excel Objects Creation.
set objXLS = CreateObject("Excel.Application")
objXLS.Visible = False
set objWkb = objXLS.Workbooks.Add
set objWks = objWkb.Worksheets(1)
'Rename the sheet
objWks.Name = "Report Exec and Bug"
'Header of the columns
objWks.Cells(1,1).Value = "Path"
objWks.Cells(1,2).Value = "TestSet"
'The 3rd column is empty
objWks.Cells(1,4).Value = "Number of Test"
objWks.Cells(1,5).Value = "Passed"
objWks.Cells(1,6).Value = "Failed"
objWks.Cells(1,7).Value = "No Run"
objWks.Cells(1,8).Value = "Not Completed"
objWks.Cells(1,9).Value = "N/A"
'10th column empty
objWks.Cells(1,11).Value = "Tot Bug"
objWks.Cells(1,12).Value = "New"
objWks.Cells(1,13).Value = "Open"
objWks.Cells(1,14).Value = "Assigned"
objWks.Cells(1,15).Value = "Fixed"
objWks.Cells(1,16).Value = "Reopened"
objWks.Cells(1,17).Value = "Rejected"
objWks.Cells(1,18).Value = "Closed"
'Extract the TestSet list under the tree structure starting from the
set myTestSetList = objFold_TL.FindTestSets("",False,"")
'increase the row number
i = 2
'For Cycle for each TestSets and analyze them
for each elTS in myTestSetList
'1st I retrieve the TestSet folder to retrieve the path to write
'on excel file. I do this in a one instruction
objWks.Cells(i,1).Value = elTS.TestSetFolder.Path
'Write the TestSet Namein the 2nd field of the excel
objWks.Cells(i,2).Value = elTS.Name
'Retrieve the TestInstance List of the TestSet
set myListaIstanze = elTS.TSTestFactory.NewList("")
'Write the Tot Number of TestInstance of the TestSet
objWks.Cells(i,4).Value = myListaIstanze.Count
'I analyze al TestInstance callling a function that returns
'a variable with all data divided by a comma
varRes = TestSet_Analizza_ListaIstanze(myListaIstanze)
'I create the array of the result splitting the variable on the comma char.
arrRes = split(varRes,",")
'write all data into the excel file
for j = 0 to Ubound(arrRes)
'use a var col for the column that must be write
'We've put a space for the 10th column 10 so I need to add 1
'to jump it.
'When j=0 it means that column is 5 so when j = 5
'column must be increased of 1, so col = 11
if j = 5 then
col = j + 5 + 1
col = j + 5
'write the information
objWks.Cells(i,col).Value = arrRes(j)
set myListaIstanze = Nothing
i = i + 1 'increase the row to write into the excel file
'save excel file
objWkb.SaveAs "c:\temp\ReportExecs_" & split(date,"/")(2) & split(date,"/")(1) & split(date,"/")(0) & "_" & split(time,":")(0) & split(time,":")(1) & ".xls"
'Close the workbook
'quit from excel application
set objWks = Nothing
set objWkb = Nothing
set objXLS = Nothing
set myTestSetList = Nothing
On Error Goto 0
On Error Resume Next
Dim intPassed, intFailed, intNoRun, intNotComp, intNA
Dim intTotBug, intNew, intOpen, intAssigned, intFixed, intReopened, intRejected
Dim intClosed, Res
Dim RunList, UltimoRun, StepList
Dim myComm, RecSet, myBug
Res = ""
'Inizialyze all counter to 0
intPassed = 0
intFailed = 0
intNoRun = 0
intNotComp = 0
intNA = 0
intTotBug = 0
intNew = 0
intOpen = 0
intAssigned = 0
intFixed = 0
intReopened = 0
intRejected = 0
intClosed = 0
'Now I do a for cycle for each TestInstance
for each elIst in theList
'retrieve the information about the TestInstance Execution Status
select case elIst.Status
case "Passed": intPassed = intPassed + 1
case "Failed": intFailed = intFailed + 1
case "No Run": intNoRun = intNoRun + 1
case "Not Completed": intNotComp = intNotComp + 1
case "N/A": intNA = intNA + 1
'retrieve the Run List of the Instance to retrieve bugs
set RunList = elIst.RunFactory.NewList("")
if RunList.Count > 0 then 'it means that at least there is a bug.
'istance of the Last Execution
set UltimoRun = elIst.LastRun
'extract the step list of the Run.
'I'm sure that at least one step has been execute because
'it is a prerequisit that Test Case have at least one Step
set StepList = UltimoRun.StepFactory.NewList("")
for each elStep in StepList
'Check if there is a bug for this step.
'I need to execute a query
set myComm = TDConnection.Command
myComm.CommandText = "Select LN_BUG_ID from LINK where " & _
"LN_ENTITY_TYPE = 'STEP' and LN_ENTITY_ID = " & elStep.ID
'Execute the query and save the result on the RecSet
set RecSet = myComm.Execute
'Check that RecSet has some record
if RecSet.RecordCount > 0 then
'move the the first record
'I need to do a cycle for all recordset row
do while Not(RecSet.EOR)
'increase the Total Bug Counter
intTotBug = intTotBug + 1
'create Bug Object by taking the ID from the RecordSet
set myBug = TDConnection.BugFactory.Item(RecSet.FieldValue(0))
'Check Bug Status to increase counters
Select case myBug.Status
case "New": intNew = intNew + 1
case "Open": intOpen = intOpen + 1
case "Assigned": intAssigned = intAssigned + 1
case "Fixed": intFixed = intFixed + 1
case "Reopened": intReopened = intReopened + 1
case "Rejected": intRejected = intRejected + 1
case "Closed": intClosed = intClosed + 1
set RecSet = Nothing
set myComm = Nothing
set StepList = Nothing
set RunList = Nothing
'now I have all counters I add them to a variable to return to the function
res = str(intPassed) & "," & _
str(intFailed) & "," & _
str(intNoRun) & "," & _
str(intNotComp) & "," & _
str(intNA) & "," & _
str(intTotBug) & "," & _
str(intNew) & "," & _
str(intOpen) & "," & _
str(intAssigned) & "," & _
str(intFixed) & "," & _
str(intReopened) & "," & _
str(intRejected) & "," & _
TestSet_Analizza_ListaIstanze = Res
On Error Goto 0
